Name: Stainless steel CF8M spring check valve 381 3 piece body BW ISO 1/4''
SKU: 11099
Price: 25.271428571429 EUR
Availability: InStock

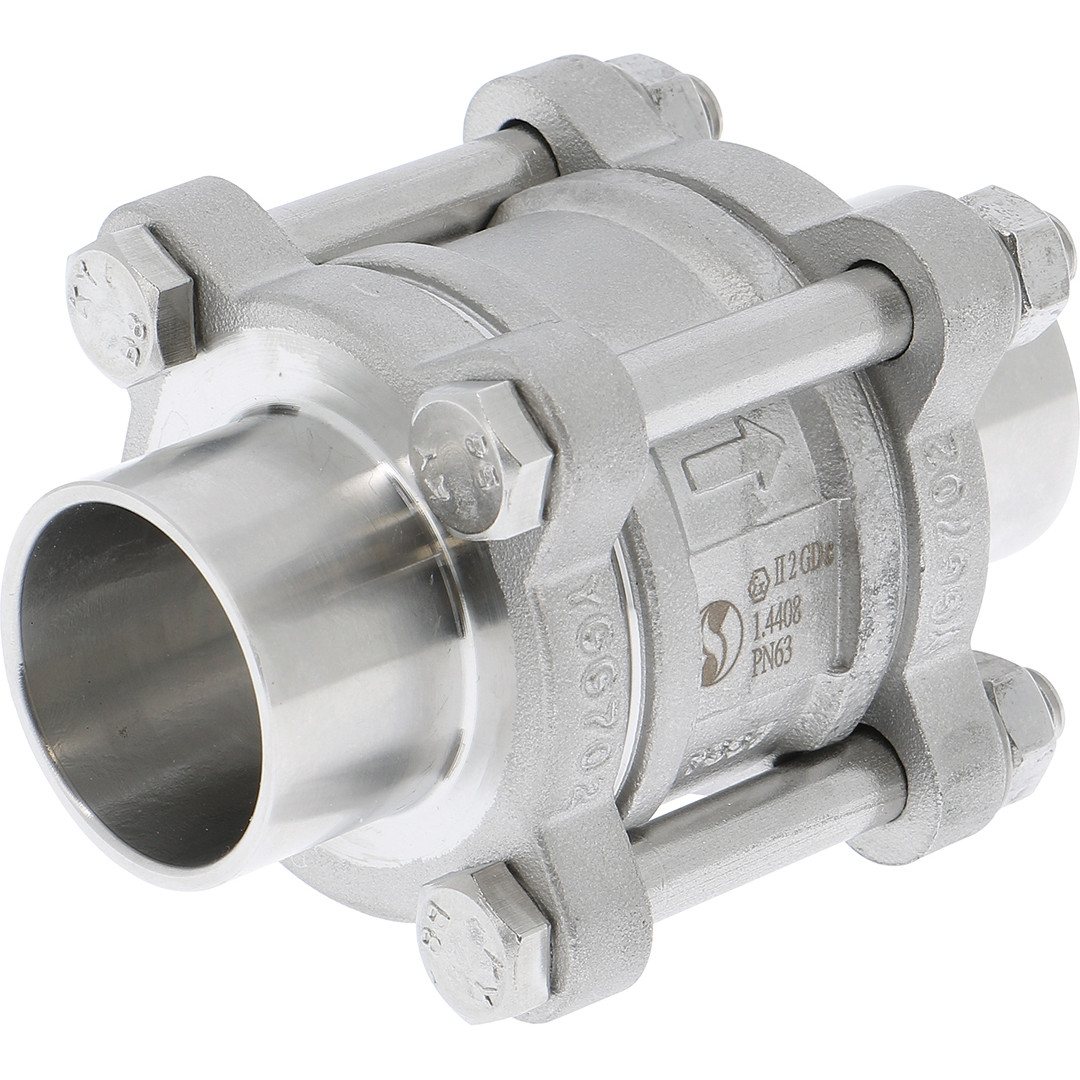

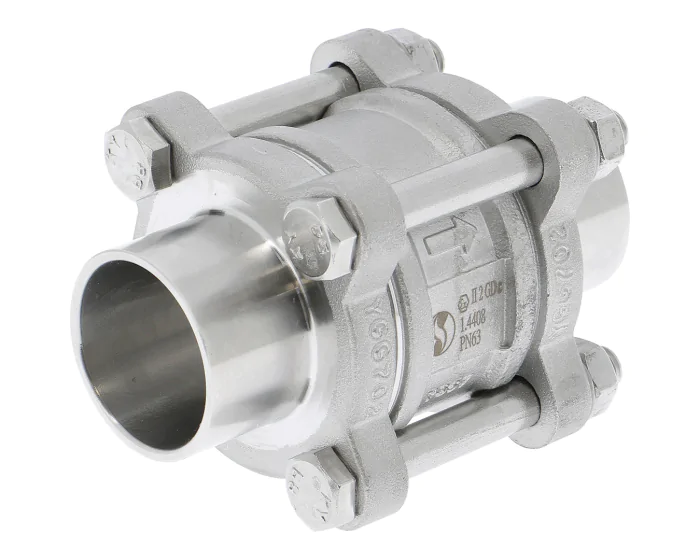

Stainless steel CF8M spring check valve 381 3 piece body BW ISO 1/4''

Stainless steel CF8M spring check valve 381 3 piece body BW ISO 1/4''

€25.27 (excl. btw)

The 381 ISO series is a 3-piece body spring check valve, in stainless steel, with BW ISO ends, metal-metal tightness and PTFE gaskets. It is ACS certified for drinking water and complies with CE 1935 for the food idnustry.

In stock Subject prior to sales
Categories : Terugslagkleppen

Documenten:

Certificate of conformity	Download
Other	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
DN inches NPS	1/4''
Mounting direction	All positions
CE risk category	III Module H
Closure member material	Stainless steel AISI 316
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
ATEX compatible	Yes
DN	DN8 - 1/4''
Face to Face (mm)	66.0
Sealing	Metal / Metal
Fluid	Acids
Gasket	PTFE
Kv (m³/h)	1.2
Body material	Stainless steel CF8M (1.4408)
PS (bar)	63
Connections	Welding BW
Seats	Stainless steel AISI 316
TS max (°C)	200
TS min (°C)	-20
ATEX zone	1 & 21. 2 & 22
Drinking water compatibility	Yes
CE	Yes
Obturator type	Spring

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
11100	Welding BW Stainless steel CF8M (1.4408) Spring DN8 - 1/4''	381ISO008	S1010900	€25.27 (excl. btw)	add to cart
11101	Welding BW Stainless steel CF8M (1.4408) Spring DN10 - 3/8''	381ISO010	S1010901	€25.27 (excl. btw)	add to cart
11102	Welding BW Stainless steel CF8M (1.4408) Spring DN15 - 1/2''	381ISO015	S1010902	€30.66 (excl. btw)	add to cart
11103	Welding BW Stainless steel CF8M (1.4408) Spring DN20 - 3/4''	381ISO020	S1010903	€38.81 (excl. btw)	add to cart
11104	Welding BW Stainless steel CF8M (1.4408) Spring DN25 - 1''	381ISO025	S1010904	€47.00 (excl. btw)	add to cart
11105	Welding BW Stainless steel CF8M (1.4408) Spring DN32 - 1''1/4	381ISO032	S1010905	€64.90 (excl. btw)	add to cart
11106	Welding BW Stainless steel CF8M (1.4408) Spring DN40 - 1''1/2	381ISO040	S1010906	€90.76 (excl. btw)	add to cart
11107	Welding BW Stainless steel CF8M (1.4408) Spring DN50 - 2''	381ISO050	S1010907	€131.14 (excl. btw)	add to cart
11108	Welding BW Stainless steel CF8M (1.4408) Spring DN65 - 2''1/2	381ISO065	S1010908	€237.76 (excl. btw)	add to cart
11109	Welding BW Stainless steel CF8M (1.4408) Spring DN80 - 3''	381ISO080	S1010909	€314.93 (excl. btw)	add to cart
11110	Welding BW Stainless steel CF8M (1.4408) Spring DN100 - 4''	381ISO100	S1010910	€450.26 (excl. btw)	add to cart
